Fundamental electrical characteristics
A public clash in the late 1880s—the War of Currents—pit Thomas Edison against Nikola Tesla and George Westinghouse over whether DC or AC should power America’s future.
Alternating current (AC) is electricity that changes direction regularly; direct current (DC) flows in one steady direction. That simple difference affects everything from household wiring to your phone battery and the high-voltage lines that move power across continents.
Why care? Because grid design, device electronics, electric vehicles and renewable systems all depend on which form is more convenient or efficient for a task. This article walks through eight clear contrasts across electrical behavior, transmission, equipment and safety.
1. Waveform and direction of flow

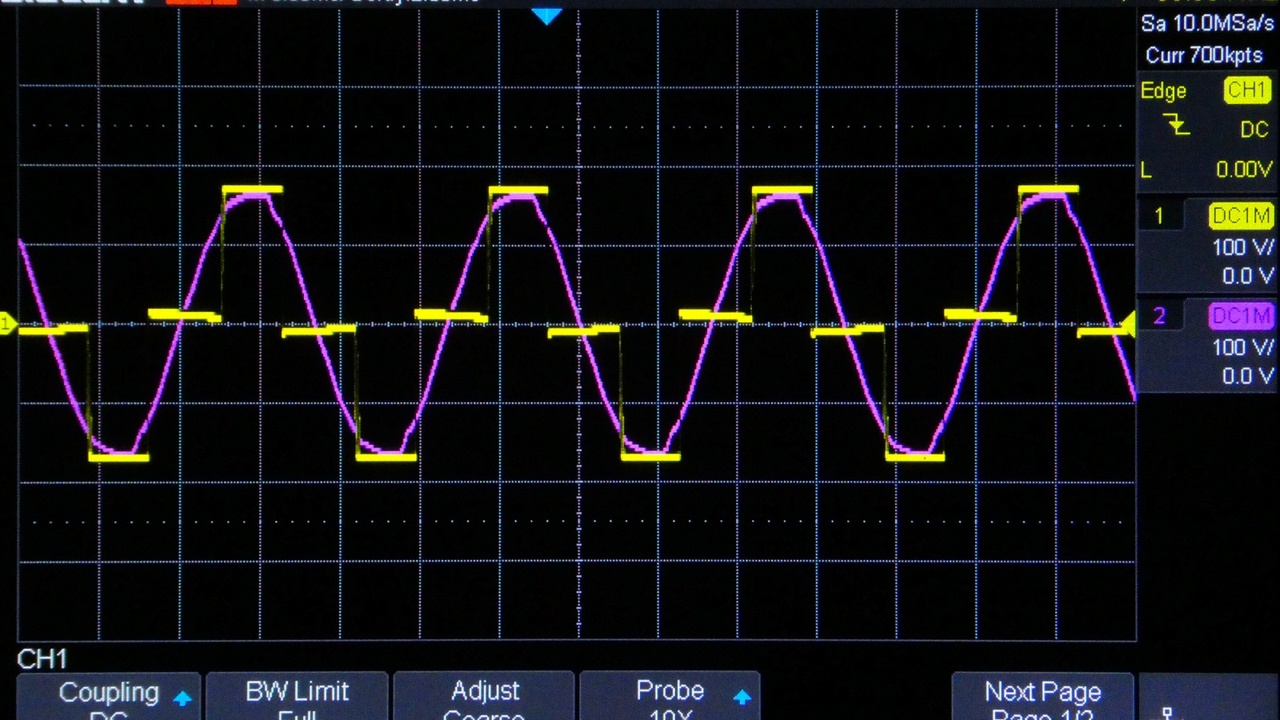

AC alternates direction; DC keeps the same polarity. On an oscilloscope, AC looks like a sine wave that crosses zero; DC appears as a flat line above or below zero.
Mains AC is typically 50 Hz in Europe or 60 Hz in North America, meaning the voltage completes 50 or 60 cycles per second. That corresponds to 100 zero crossings per second for 50 Hz and 120 crossings for 60 Hz.
Compare a European wall outlet (230 V at 50 Hz) to an AA battery at about 1.5 V DC to see the practical difference: one reverses polarity tens of times per second, the other provides a steady supply.
2. Voltage and current behavior (RMS vs peak)
AC voltages are usually quoted as RMS (root mean square) values because the instantaneous voltage swings above and below zero. DC voltages are absolute and steady.
To convert, peak AC voltage is roughly 1.414 times the RMS. So a 120 V RMS mains supply reaches about 170 V at its peaks. Devices and insulation must tolerate those peak voltages even though ratings list the RMS number.
That difference matters for designers: an appliance rated for 120 V AC must handle transient peaks, while a 12 V DC device sees a constant potential.
One clear way to frame the topic is to compare the differences between alternating current and direct current when thinking about waveforms and component stress.

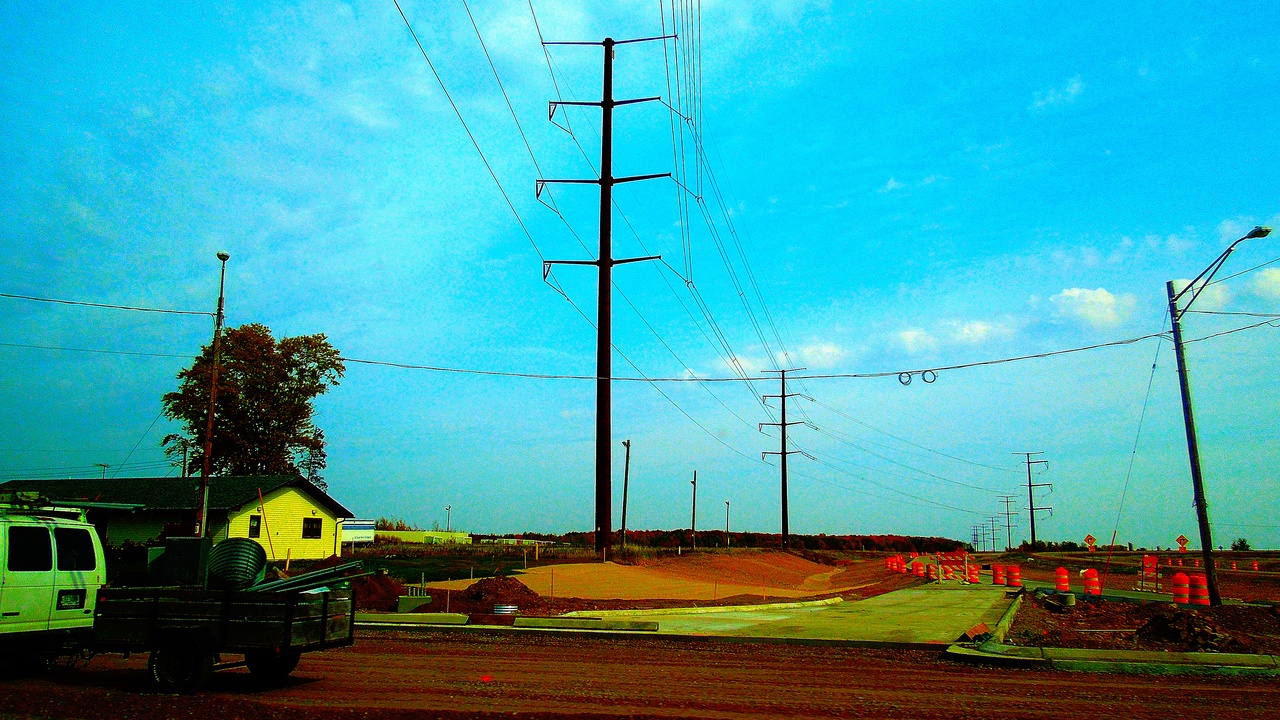

Transmission and distribution trade-offs
AC dominated early power systems because transformers make it easy to raise and lower voltage. Higher voltage for long-distance lines means lower current and much lower resistive losses.
Transmission often runs at hundreds of kilovolts—500 kV is a common continental level—so lines can move large power with smaller currents. Resistive losses scale with current squared (I²R), so cutting current pays off quickly.
In recent decades, high-voltage DC (HVDC) has become competitive for very long or submarine links. HVDC avoids AC reactive losses and synchronization challenges, though converter stations add capital cost.
A real example is the NorNed HVDC cable: roughly 580 km and rated for about 700 MW, it links Norway and the Netherlands where submarine AC would have been less efficient or impractical.
3. Ease of voltage transformation
Transformers work only with AC, which let utilities step voltages up to several hundred kilovolts for long runs and step them down at substations for homes. That invention in the late 19th century was a key reason AC won wide adoption.
Stepping up to 500 kV reduces line current substantially, lowering I²R losses and reducing the number of substations needed. Substation transformers then bring voltage down to 230 V or 120 V for household use.
4. Transmission losses and long-distance tradeoffs
Resistive losses rise with the square of current, so transmitting at higher voltage reduces losses. For very long distances and undersea links, HVDC can be the more efficient choice despite conversion costs.
HVDC avoids reactive power flows and synchronization constraints across AC grids, making ±500 kV or similar links practical for long-haul, high-capacity transfer. Converter stations are expensive but often justified over hundreds of kilometers.
Projects like NorNed (≈580 km, 700 MW) show how HVDC enables power exchange where HVAC would struggle economically or technically.

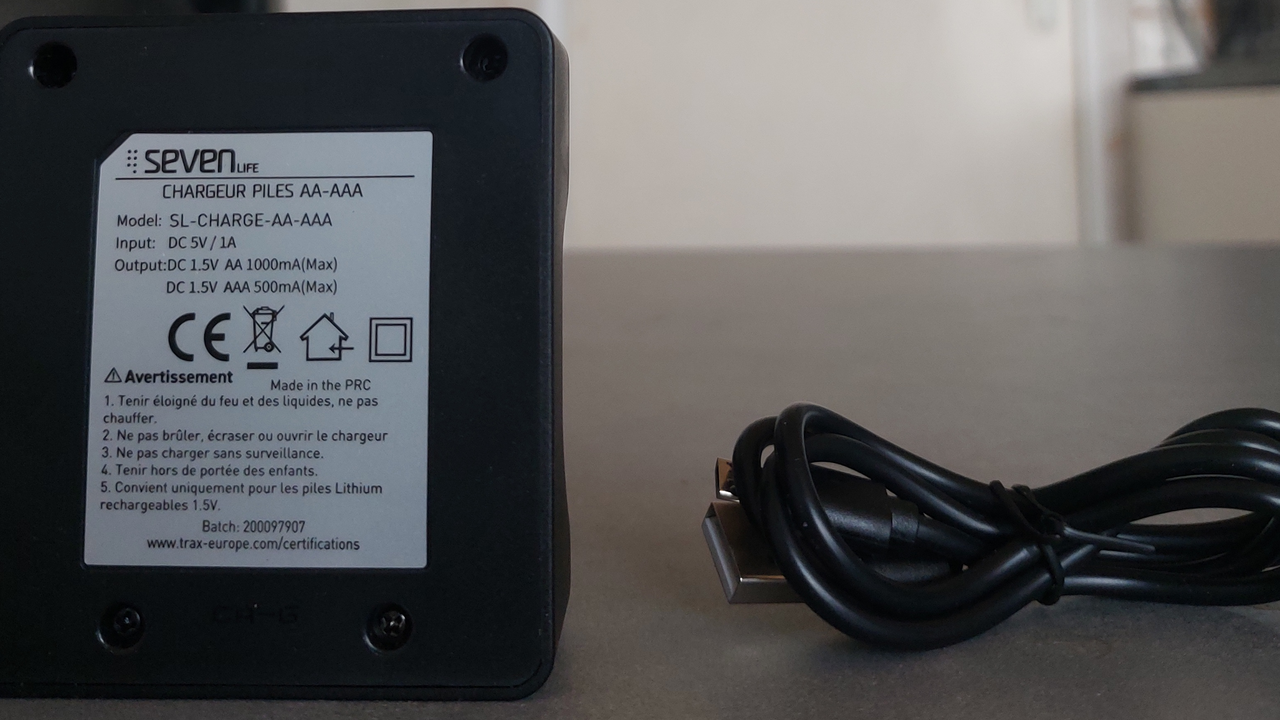

Devices, components, and everyday applications
AC remains the default for delivering power to large motors, lighting circuits and household outlets. DC is native to batteries, solar panels and the low-voltage electronics inside most gadgets.
Power electronics—rectifiers and inverters—bridge the two worlds. Rectifiers convert mains AC to DC for electronics, while inverters turn DC from batteries or PV into grid-compatible AC.
Examples are everywhere: induction motors in washing machines run on AC, phone chargers rectify 120/230 V AC to 5–20 V DC, and home storage systems like the Tesla Powerwall store roughly 13.5 kWh of DC energy for later inverter use.
5. Consumer devices and power supplies
Most household appliances plug into AC mains, but many electronic circuits inside use DC rails after rectification and regulation. That’s why laptops and LED drivers come with external power bricks or internal switching supplies.
Common low-voltage DC rails include 3.3 V, 5 V and 12 V for electronics. A laptop brick typically converts AC to around 19 V DC, while LED drivers convert mains to a controlled low-voltage DC current for lighting.
6. Batteries, storage, and renewable integration
Solar PV panels and batteries produce DC, so grid-tied systems need inverters to feed AC into the distribution network. Residential inverters commonly range from about 3 kW to 10 kW for rooftop systems.
Battery voltages vary: a car starter battery is ~12 V, small storage stacks are often 48 V, and EV battery packs commonly run around 400 V. The Tesla Powerwall stores about 13.5 kWh of DC energy behind an inverter.
DC-coupled systems that keep energy in DC form for charging and local use can reduce conversion losses, which is why some installers prefer DC-coupling for solar-plus-storage and EV charging setups.

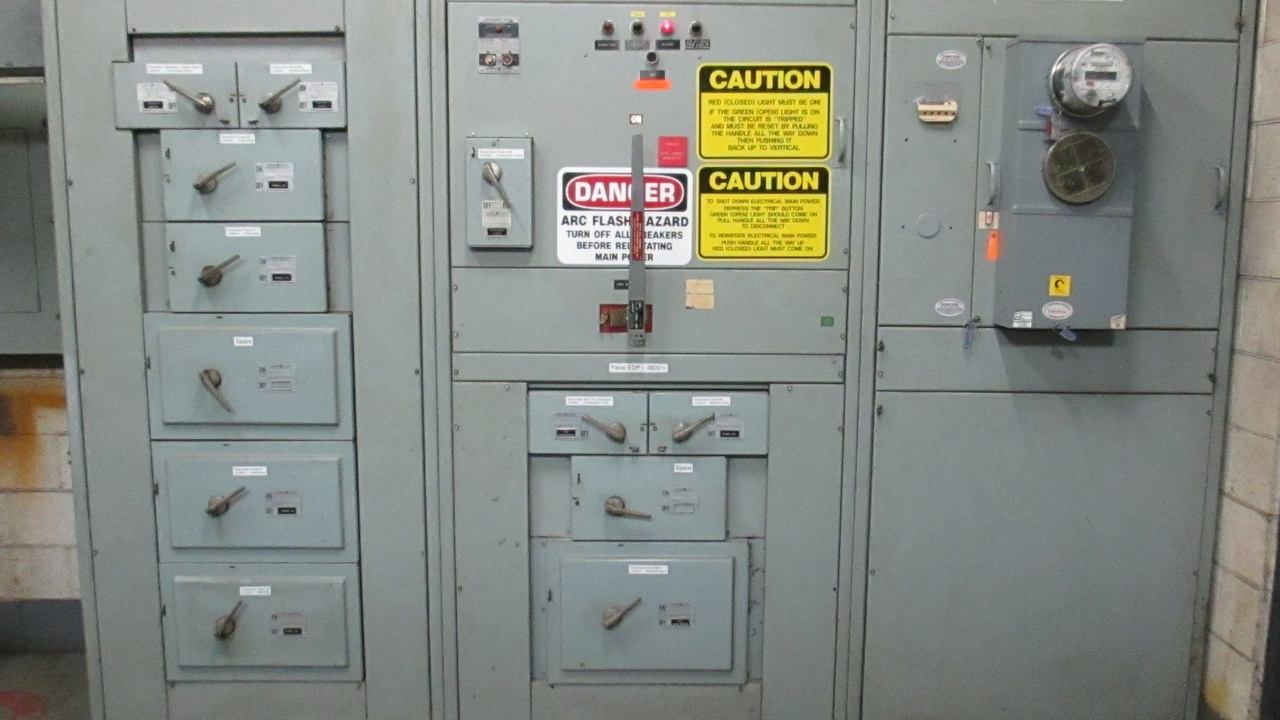

Safety, standards, and future trends
Both AC and DC are hazardous at sufficient voltages and currents, but they affect the body differently. Mains-frequency AC (50–60 Hz) can induce strong muscle contractions and has known cardiac risks; DC tends to produce a single sustained shock.
Protection devices cover both types: circuit breakers, fuses, residual-current devices (RCDs or GFCIs) and surge protectors are widely used. Codes and standards from IEC, IEEE and the U.S. National Electrical Code (NEC) define safe practices for installations.
Looking ahead, expect more HVDC projects for long renewables links, broader deployment of DC fast charging at stations, and interest in DC microgrids for data centers and buildings to reduce conversion stages.
7. Safety characteristics and protective devices
Both AC and DC require overcurrent protection and proper grounding. Ground-fault circuit interrupters (GFCIs) are common in wet areas like bathrooms and kitchens to protect against leakage currents.
NEC rules cover wiring methods, grounding and equipment ratings in the U.S., while IEC and IEEE provide international and technical standards. Installers choose breakers and devices rated for the expected AC or DC voltages and fault currents.
8. Emerging trends: HVDC, EVs, and DC microgrids
HVDC interconnectors are increasingly used to move bulk renewable power across long distances and between asynchronous grids. Converter stations add initial cost but enable efficient links at ±500 kV and similar voltage classes.
EVs rely on high-voltage DC battery packs; public DC fast chargers now reach ratings up to about 350 kW (for example, some Supercharger stations and other fast-charging networks). That demand pushes more DC infrastructure into transport corridors.
Some data centers and commercial buildings are experimenting with DC distribution to reduce repeated conversions. The practical outcome is coexistence: AC for grid-wide distribution and DC where storage, electronics or transportation need it most.
Summary
- AC alternates direction at mains frequencies (50–60 Hz) and is easy to transform with transformers; DC provides steady voltage used by batteries and electronics.
- Transmission favors high-voltage AC for regional grids, but HVDC (e.g., NorNed, ±500 kV links) is more efficient for long submarine or long-haul routes despite converter costs.
- Everyday devices bridge both: induction motors run on AC, while phones, LEDs and the Tesla Powerwall rely on DC after rectification or storage; residential inverters are typically 3–10 kW.
- Safety and standards (IEC, IEEE, NEC) cover both forms; DC fast charging (up to ~350 kW) and DC-coupled storage are reshaping how and where DC is used.
- For a practical next step, homeowners and EV buyers should note their inverter size, charging needs and whether a DC-friendly installation (for storage or EV charging) could reduce conversion losses.
